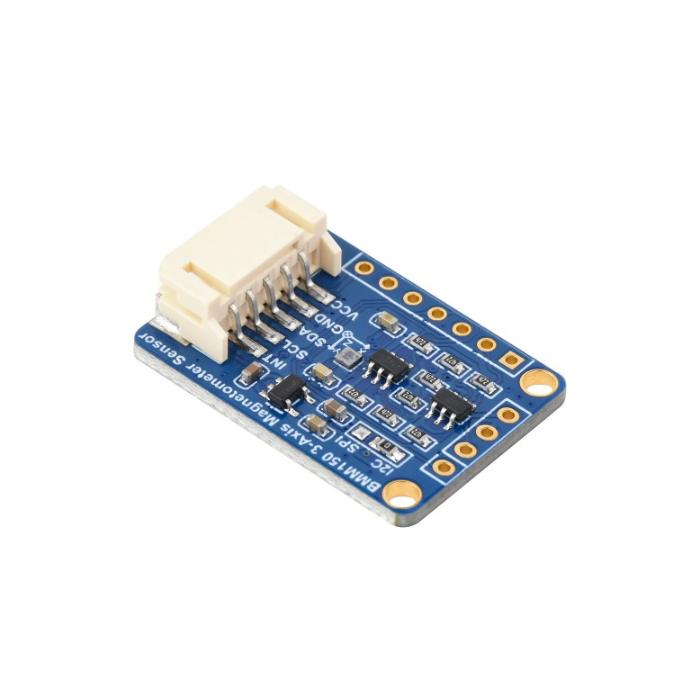

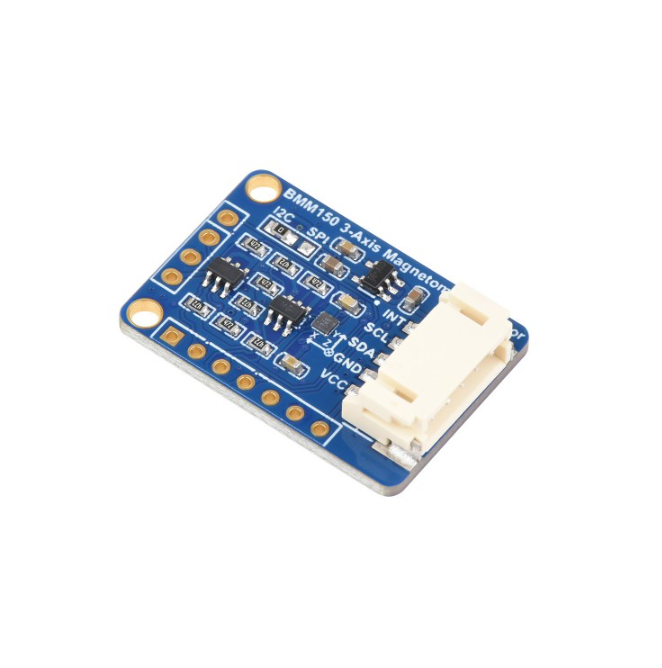

BMM150 3-axis Magnetometer Sensor, Digital Compass Sensor, Magnetic Field Measurement
Suitable for compass, electronic compass applications
Supports Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32 ...
This is a digital compass sensor based on BMM150, supports magnetic field measuring in three perpendicular axes, I2C / SPI interfaces, can be used in robot navigation and positioning, electronic compass, magnetic heading devices, etc.
| Communication interface | I2C / SPI (I2C bus by default) |
|---|---|
| Power supply | 3.3V~5V |
| Magnetic measuring range | 1300μt (X, Y axis), 2500μt (Z axis) |
| Resolution | 0.3μT |
| Operating temperature | -40℃ ~ +85 ℃ |
| Dimensions | 29 × 20mm |
For Use With Controller Boards Like Raspberry Pi/Raspberry Pi Pico/ESP32/Arduino

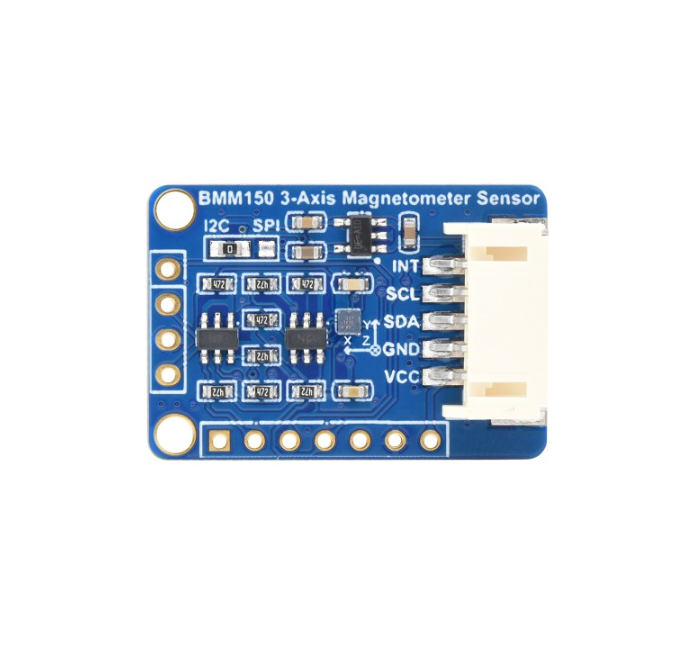

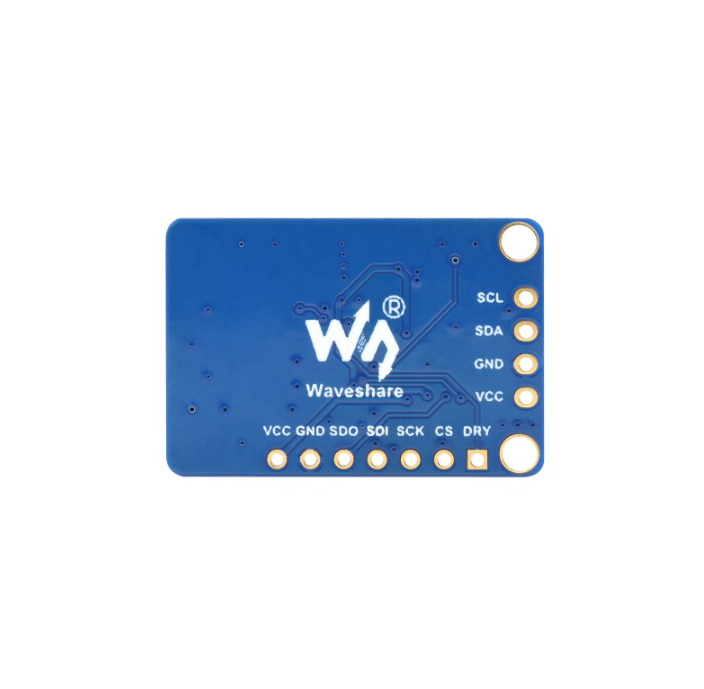

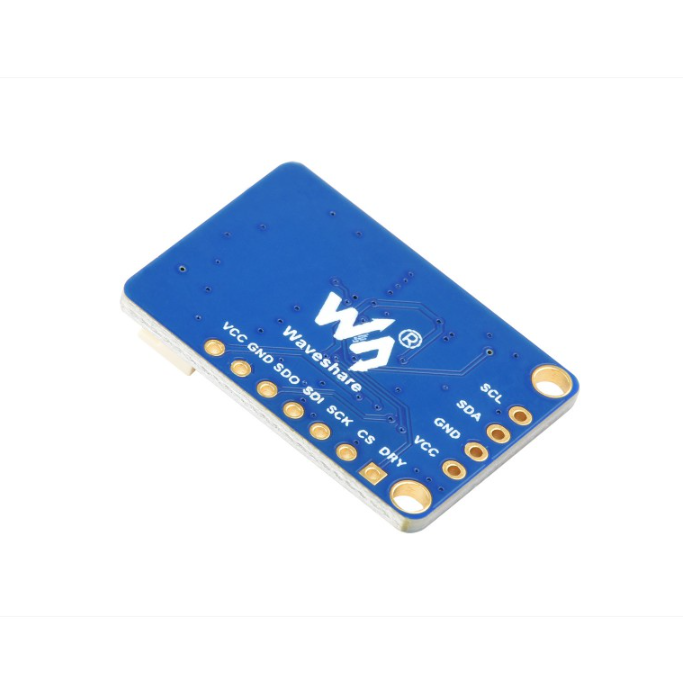

| PIN | I2C | PIN | SPI |
|---|---|---|---|
| VCC | 3.3V/5V power supply | VCC | 3.3V/5V power supply |
| GND | Ground | GND | Ground |
| SDA | I2C data | SDO | SPI data, can be connected to host MISO |
| SCL | I2C clock | SDI | SPI data, can be connected to host MOSI |
| INT | interrupt output, can be connected to I/O | SCK | SPI clock input |
| CS | Chip selection, can be connected to I/O | ||
| DRY | Data sending/receiving ready state, can be connected to I/O |
