TUL PYNQ-Z2 FPGA Vision & AI Lab Kit (Dev Kit + Camera + Phụ kiện)

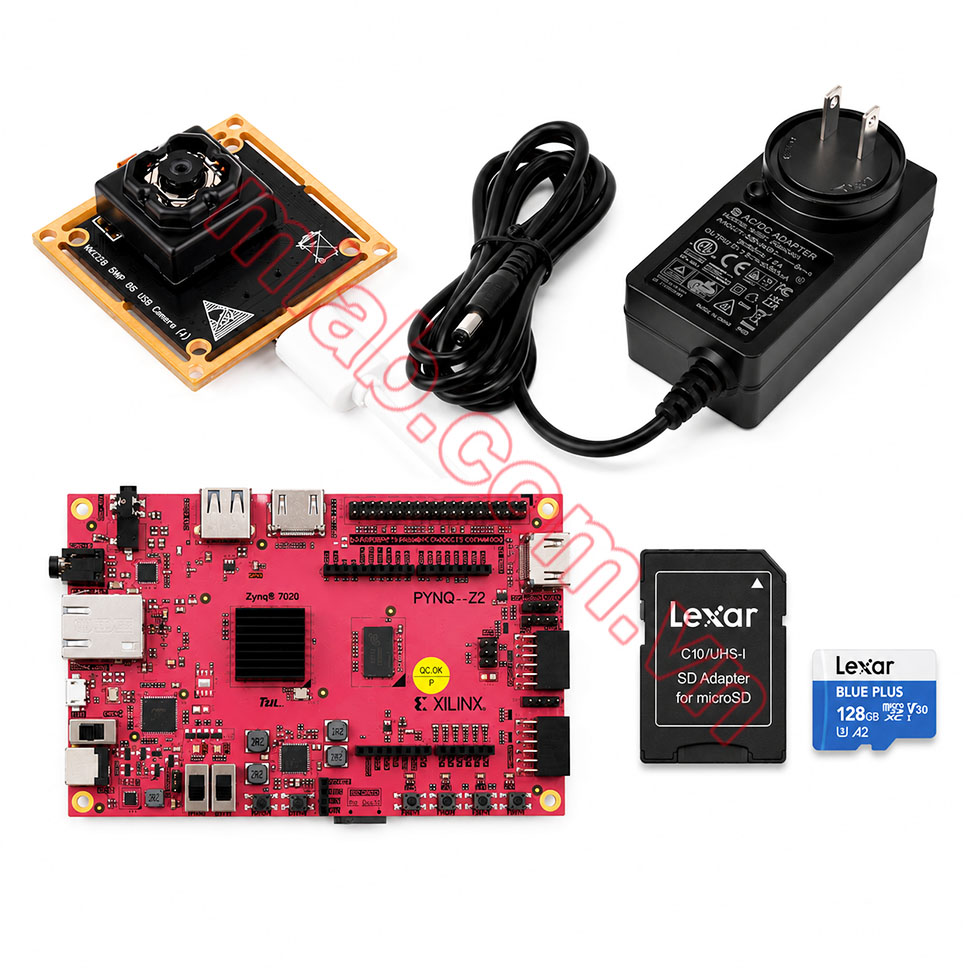

Thành phần trong bộ sản phẩm gồm:

+ 1xPYNQ-Z2 FPGA Board: (LINK TUL PYNQ-Z2 Board)

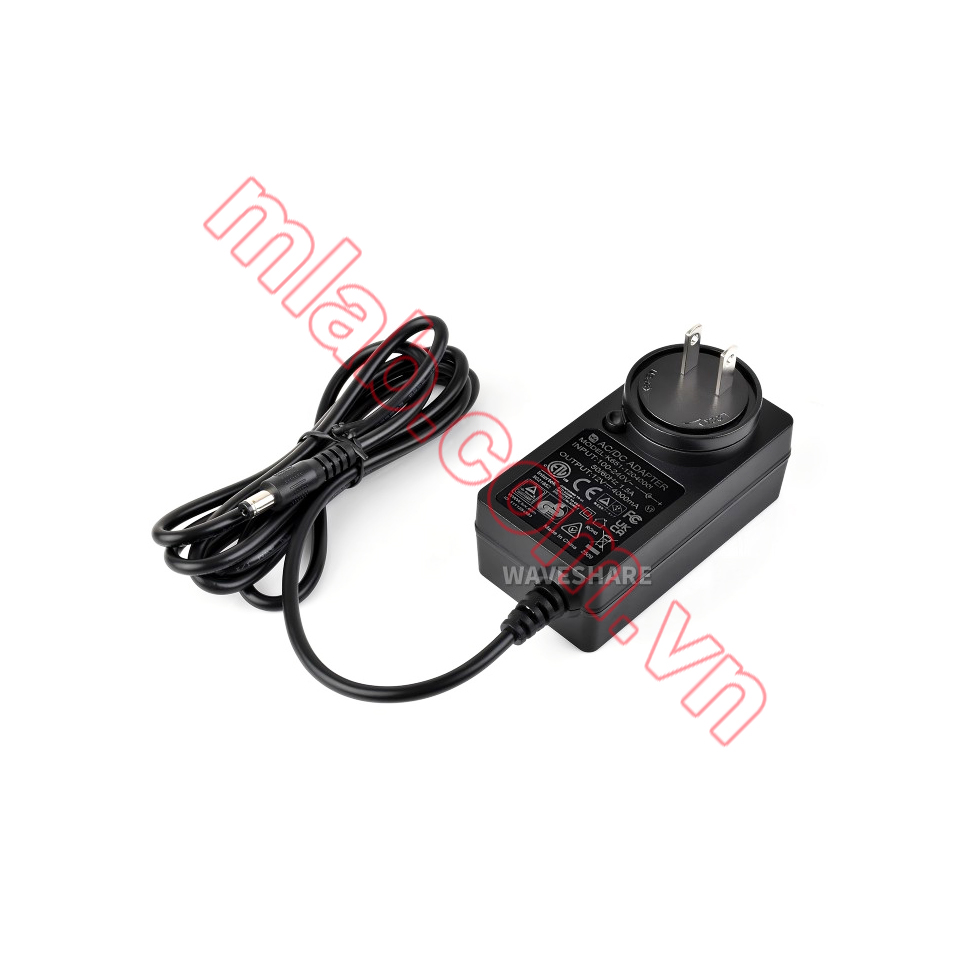

+ 1xNguồn 12V/4A: (LINK Nguồn)

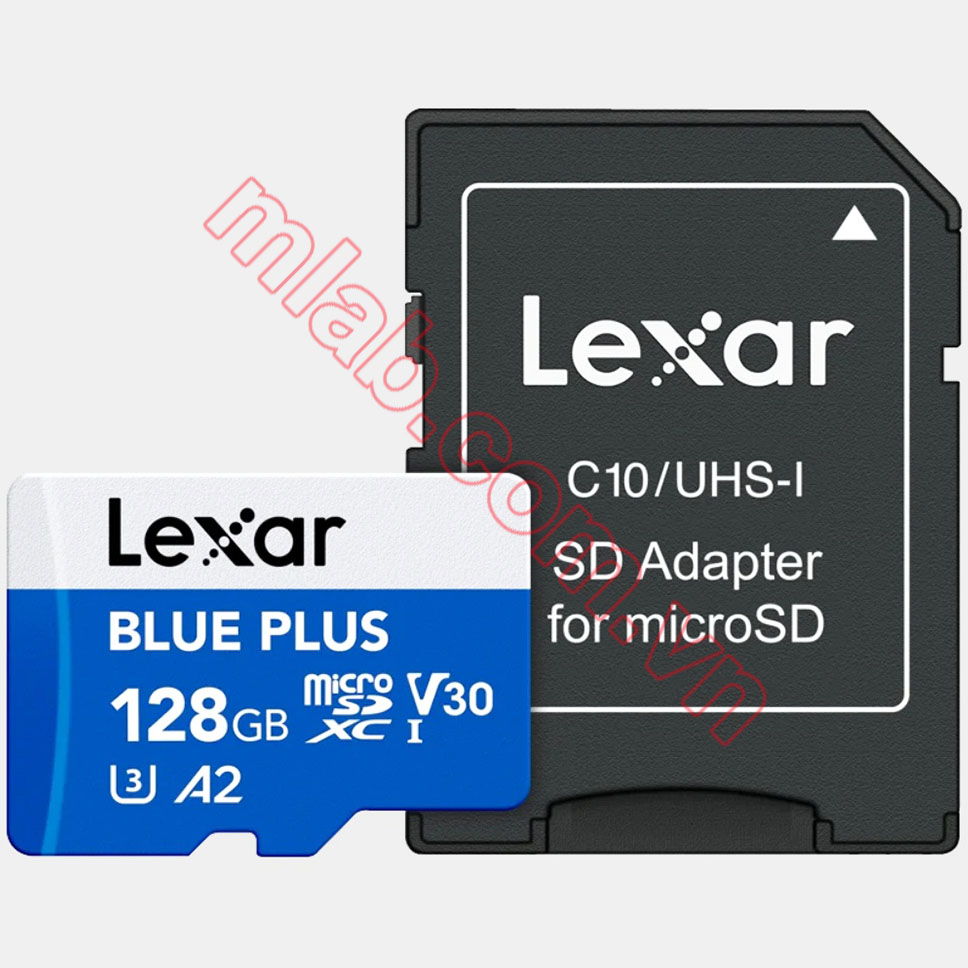

+ 1xThẻ nhớ 128GB MicroSDXC Lexar BLUE PLUS: (LINK thẻ nhớ)

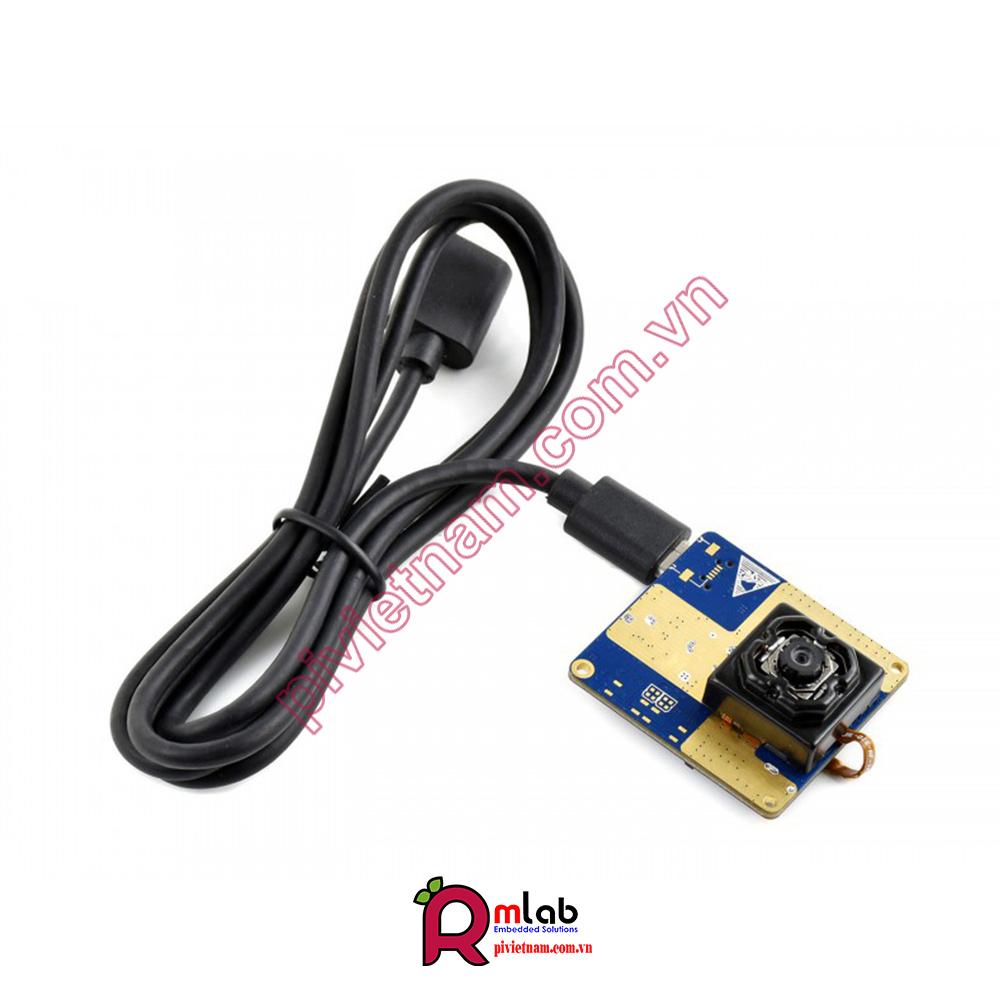

+ 1xCamera USB IMX258 (13MP, Auto Focus, OIS chống rung): (LINK camera)

PRODUCT SPECIFICATION

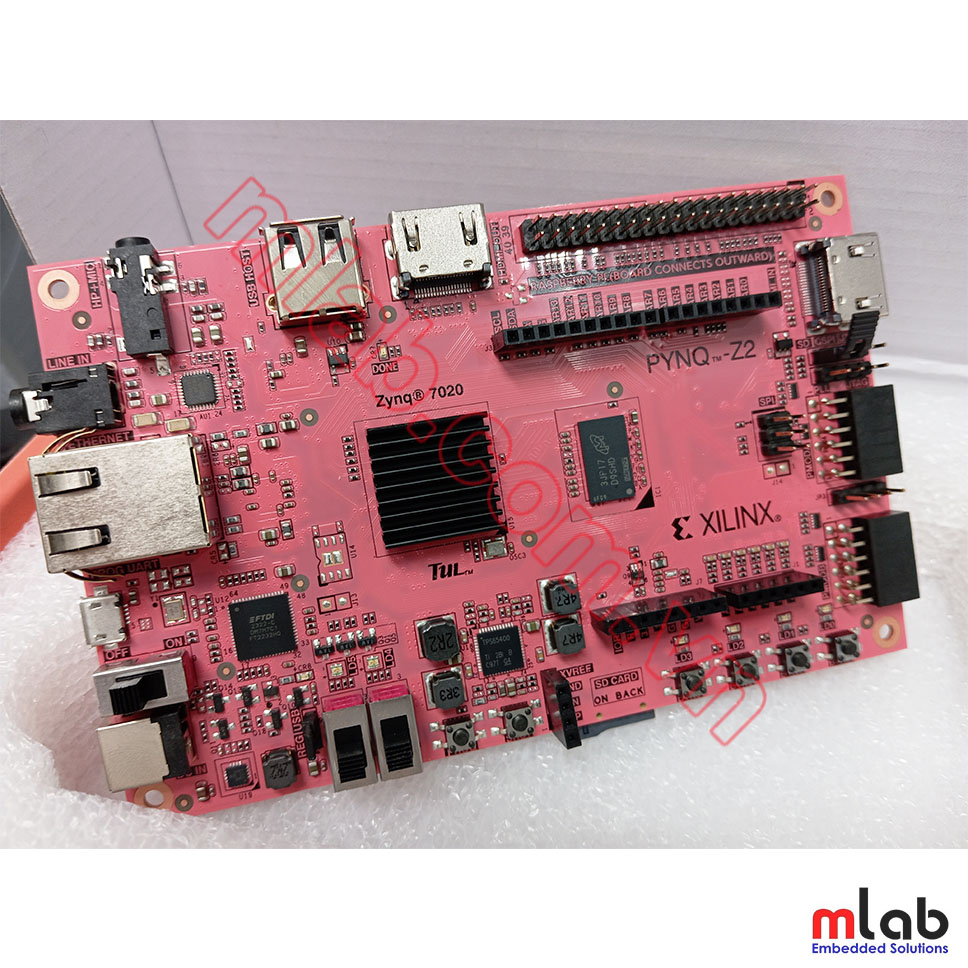

TUL PYNQ-Z2 Board XILINX ZYNQ XC7Z020 FPGA 1M1-M000127DEV

ZYNQ XC7Z020-1CLG400C
 + 650MHz dual-core Cortex-A9 processor
 + DDR3 memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
 + High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
 + Low-bandwidth peripheral controller: SPI, UART, CAN, I2C
 + Programmable from JTAG, Quad-SPI flash, and MicroSD card
 + Programmable logic equivalent to Artix-7 FPGA
     - 13,300 logic slices, each with four 6-input LUTs and 8 flip-flops
     - 630 KB of fast block RAM
     - 4 clock management tiles, each with a phase locked loop (PLL) and mixed-mode clock manager (MMCM)
     - 220 DSP slices
     - On-chip analog-to-digital converter (XADC)

Memory
 + 512MB DDR3 with 16-bit bus @ 1050Mbps
 + 16MB Quad-SPI Flash with factory programmed 48-bit globally unique EUI-48/64™ compatible identifier
 + MicroSD slot

Power
 + Powered from USB or 7V-15V external power source

USB and Ethernet
 + Gigabit Ethernet PHY
 + Micro USB-JTAG Programming circuitry
 + Micro USB-UART bridge
 + USB 2.0 OTG PHY (supports host only)

Audio and Video
 + HDMI sink port (input)
 + HDMI source port (output)
 + I2S interface with 24bit DAC with 3.5mm TRRS jack
 + Line-in with 3.5mm jack

Switches, Push-buttons and LEDs
 + 4 push-buttons
 + 2 slide switches
 + 4 LEDs
 + 2 RGB LEDs

Expansion Connectors
 + Two standard Pmod ports
   - 16 Total FPGA I/O (8 shared pins with Raspberry Pi connector)
 + Arduino Shield connector
   - 24 Total FPGA I/O
   - 6 Single-ended 0-3.3V Analog inputs to XADC
 + Raspberry Pi connector
   - 28 Total FPGA I/O (8 shared pins with Pmod A port)

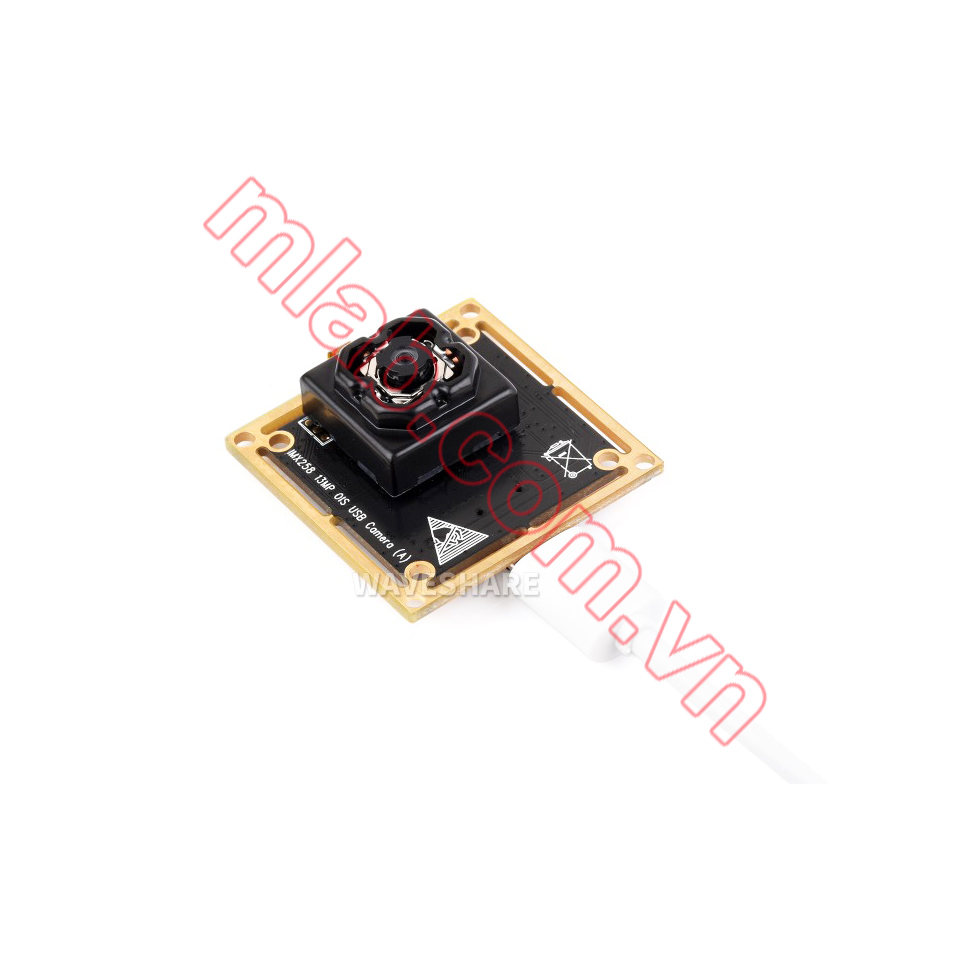

Camera USB IMX258 (13MP, Auto Focus, OIS chống rung)

DOCUMENTS

+ PYNQ-Z2 User Manual (PDF)
+ Zynq Datasheet (PDF)
+ Zynq Manual (PDF)

+ Wiki: IMX258_13MP_OIS_USB_Camera_(A)

+ MLAB: quý khách vui lòng liên hệ sđt(zalo): 086.262.8846 để được tư vấn, hỗ trợ trực tiếp
